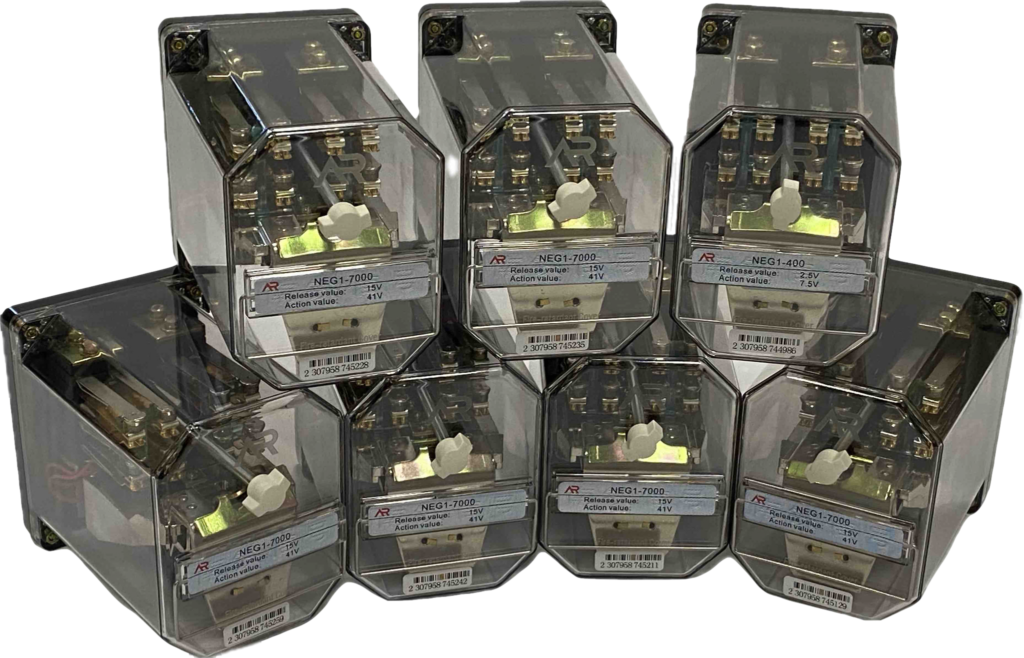

NEG
In relay designation:
D – slow acting with delay on release
C – crash use
R – with built-in rectifier
L – launcher
F – fire
S – with stabilization
H – hypersensitivity
T – with thermal element
1 – 8 bridging contacts
2 – 4 bridging contacts
3 – 2 bridging and 2 closing contacts
4 – 4 bridging and 4 closing contacts
5 – 2 bridging and 2 opening contacts
6 – 4 bridging and 1 closing contacts
|
Name |
Number |
Prototype |
Name |
Number |
Prototype |
|
NEG1-400 |
001.00 |
НМШ1-400 |
NEG4D-250 |
031.00 |
НМШМ4-250 |
|
NEG1-1440 |
002.00 |
НМШ1-1440 |
NEG4D-500 |
032.00 |
НМШМ4-500 |
|
NEG1-1800 |
003.00 |
НМШ1-1800 |
NEG4D-100/1100 |
033.00 |
НМШМ4-100/1100 |
|
NEG1-7000 |
004.00 |
НМШ1-7000 |
NEG4D-105/1100 |
034.00 |
НМШМ4-105/1100 |
|
NEG1D-10 |
005.00 |
НМШМ1-10 |
NEG2H-2 |
035.00 |
АНШ2-2 |
|
NEG1D-20 |
006.00 |
НМШМ1-20 |
NEG2H-37 |
036.00 |
АНШ2-37 |
|
NEG1D-180 |
007.00 |
НМШМ1-180 |
NEG2H-40 |
037.00 |
АНШ2-40 |
|
NEG1D-360 |
008.00 |
НМШМ1-360 |
NEG2H-310 |
038.00 |
АНШ2-310 |
|
NEG1D-560 |
009.00 |
НМШМ1-560 |
NEG2H-520 |
039.00 |
АНШ2-520 |
|
NEG1D-700 |
010.00 |
НМШМ1-700 |
NEG2H-700 |
040.00 |
АНШ2-700 |
|
NEG1D-1000/560 |
011.00 |
НМШМ1-1000/560 |
NEG2H-1230 |
041.00 |
АНШ2-1230 |
|
NEG1D-1100/700 |
012.00 |
НМШМ1-1100/700 |
NEG2H-1600 |
042.00 |
АНШ2-1600 |
|
NEG1D-1120 |
013.00 |
НМШМ1-1120 |
NEG2HD-310 |
043.00 |
АНШМ2-310 |
|
NEG1D-1400 |
014.00 |
НМШМ1-1400 |
NEG2HD-380 |
044.00 |
АНШМ2-380 |
|
NEG2-900 |
015.00 |
НМШ2-900 |
NEG2HD-620 |
045.00 |
АНШМ2-620 |
|
NEG2-4000 |
016.00 |
НМШ2-4000 |
NEG2HD-760 |
046.00 |
АНШМ2-760 |
|
NEG2-12000 |
017.00 |
НМШ2-12000 |
NEG5H-1230 |
047.00 |
АНШ5-1230 |
|
NEG2D-1.7 |
018.00 |
НМШМ2-1,7 |
NEG5H-1600 |
048.00 |
АНШ5-1600 |
|
NEG2D-320 |
019.00 |
НМШМ2-320 |
NEG2R-900/900 |
049.00 |
НМВШ2-900/900 |
|
NEG2D-640 |
020.00 |
НМШМ2-640 |
NEG2HR-2400 |
050.00 |
АНВШ2-2400 |
|
NEG2D-1500 |
021.00 |
НМШМ2-1500 |
NEG2F-40 |
051.00 |
ОМШ2-40 |
|
NEG2D-10/1500 |
022.00 |
НМШМ2-10/1500 |
NEG2F-46 |
052.00 |
ОМШ2-46 |
|
NEG2D-3000 |
023.00 |
НМШМ2-3000 |
NEG2F-1 |
053.00 |
ОМШМ-1 |
|
NEG3-460/400 |
024.00 |
НМШ3-460/400 |
NEG2HF-180/0.45 |
054.00 |
АОШ2-180/0,45 |
|
NEG4-3 |
025.00 |
НМШ4-3 |
NEG2HF-1 |
055.00 |
АОШ2-1 |
|
NEG4-3.4 |
026.00 |
НМШ4-3,4 |
NEG1Т-1800 |
056.00 |
НМШТ-1800 |
|
NEG4-530 |
027.00 |
НМШ4-530 |
NEG1Т-1440 |
057.00 |
НМШТ-1440 |
|
NEG4-600 |
028.00 |
НМШ4-600 |
NEG2HDT-380 |
058.00 |
АНШМТ-380 |
|
NEG4-2400 |
029.00 |
НМШ4-2400 |
NEG2HDT-310 |
059.00 |
АНШМТ-310 |
|
NEG4-3000 |
030.00 |
НМШ4-3000 |
|
|
|
